testing apparatus | KHU Sondermaschinen

Tensile Strength Test

By cable, fo
Q-TTS 50

The cable sample is put into the testing device and clamped at the designed places.
The desired tensile force has to be defined.
An automatic STOP is possible after the expiry of the programmed time.

Technical Data

Pulling force pneumatic: 100 – 5.000 N
Testing length approx. 600 m

Pulling force hydraulic: 4.000 – 30.000 N
Testing length approx. 600 m

Pulling force hydraulic: 4.000 – 50.000 N
Testing length approx. 360 m

Cable diameter: 5 – 40 mm

Zugfestigkeitstest

Crush Test

By cable, fo
Q-TCT 600

According to IEC-794-1-E3-Crush

The cable sample is tightened into the testing device, then pinched between a stationary flat steel plate and a movable 100 mm (length) steel plate whereupon transverse pressure is applied on the cable sample.

The desired pressure has to be defined.

An automatic STOP is possible after the expiry of the programmed time.

This test can be executed automatically and manually.

Measuring unit for calibration of pressure setting including display.

Technische Daten

Cycle time adjustable 0 – 300 sec
Steel plates 100 x 100 mm
Pressure 20 – 6.000 N
Cable sample length 500 mm
Cable diameter 3 – 40 mm

Querdruck Kabeltest

Flexing Apparatus

By cable, fo
Q-TFA 40

according to IEC-794-1-E8 DYNAMIC

Technical Data

Cable diameter   5 – 40 mm
Bending diameter  (S-Form):      approx. 10x cable diameter       50/100/150/250/350mm included

Cycle:                   0 – 30 strokes
Tensioning weights per side: 1 – 20 kg (10 x 1 kg and 5 x 2 kg)

Biegewechseltest

Impact Test

By cable, fo
Q-TI 40

According to IEC-794-E4

The cable sample is clamped between two clamping jaws.
A weight which is located on a guiding unit is adjusted and released automatically and moves in free fall downwards onto the cable sample.

An automatic STOP is possible after the expiry of the programmed time.

This test can be executed automatically and manually.

The required mounting equipment for two different cable diameters comes with the testing apparatus.

Technical Data
Cable sample diameter: 3 – 40 mm
Cycles adjustable: 0 – 30
Fall height adjustable: 500 -1.000 mm
Radius of hammer: 300 mm
Weights: 1 – 10 kg (10 x 1 kg)
Hammerschlagtest

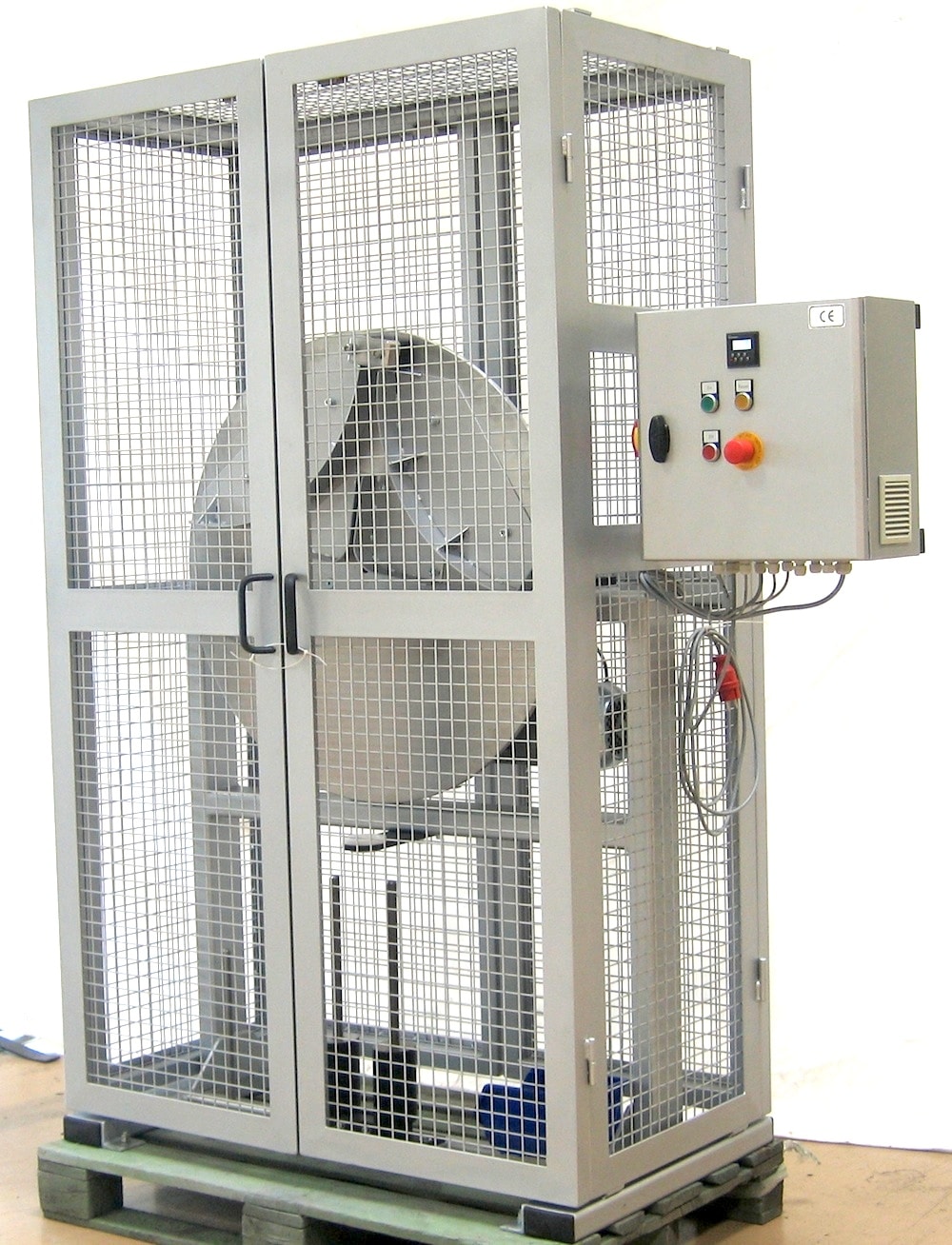

Repeated Bending Test

By cable, fo
Q-TRB 40

according to IEC-794-1-E6

Technical Data

Cable diameter:                  3 – 40 mm
Bending radius:    approx. 10 times wire diameter       50 / 350 mm include
Cycle:      0 – 30 strokes
Tension weights:                1 – 10 kg (10 x 1 kg)
Bending radius 75/100/125/150/175/200/225/250/275/300/325

Clamping device for diameter 5mm and 35mm included
Clamping device for diameter (dimension at buyer`s option)

Testgerät wiederholte Biegung
